Heats water directly from 1-2 Solar panels by day and stores it for your shower the next morning with less than 8 degrees heat loss.

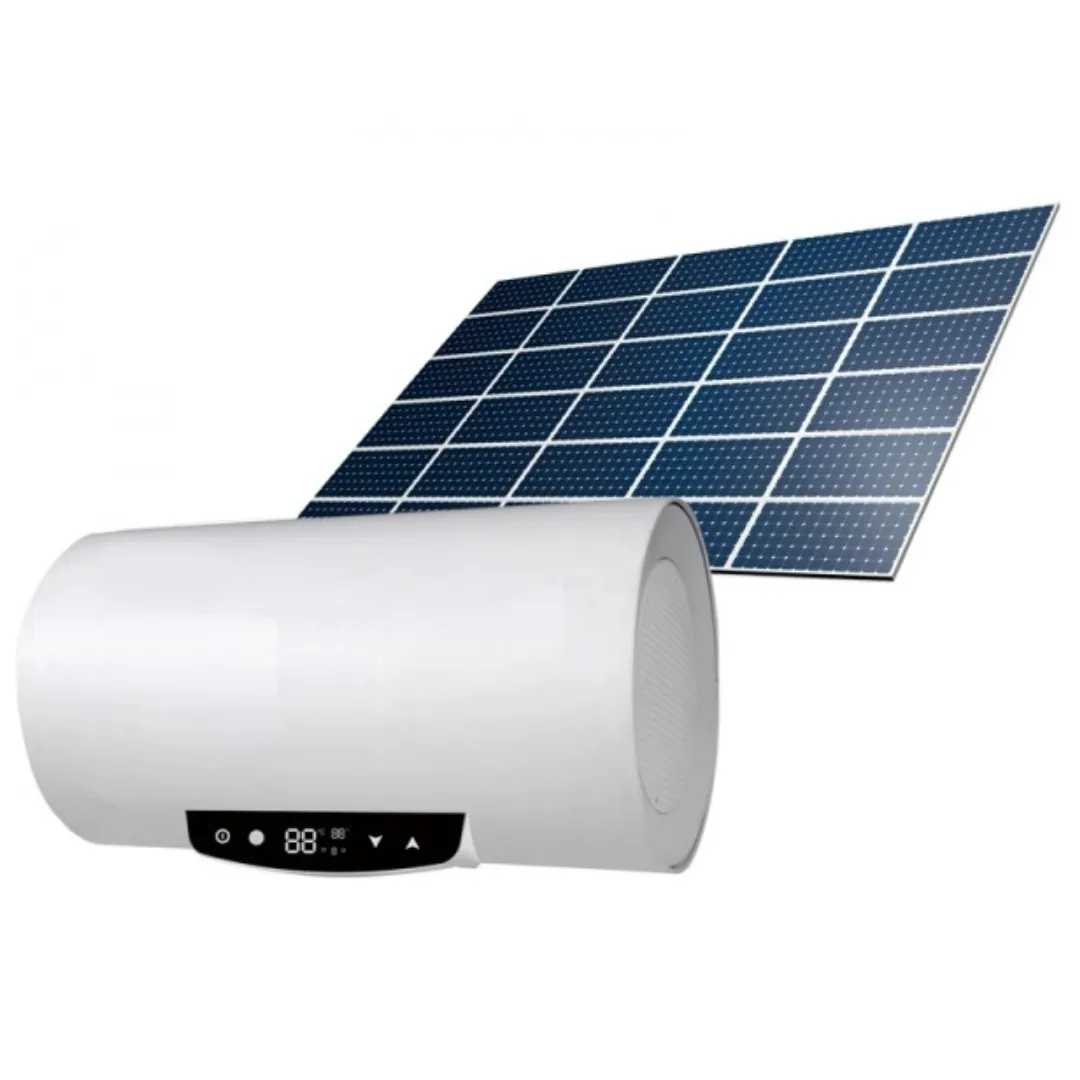

26 Gallon (100L) Solar 72V DC Photovoltaic Water Heater can replace an older, much larger 80 gallon tank

How it Works

• First Solar PV DC-Direct water heater in the world - Extremely Efficient!
• Ultra-insulated Water Heater functions like a Thermal Battery storing energy throughout the night and remains hot for your morning shower
• Hybrid - 72V Solar DC-Direct 220V AC simultaneously - 240v AC is ONLY a backup, even in winter nearly no need for grid electricity
• Nearly no need for grid power in winter only with 400w-600w solar panels for different areas.
• 10 Year Warranty
• Does not require an inverter or batteries any other equipment

Features

• Power consumption is only half of the traditional electrical water heater if only use grid power.
• 2 grade higher than the best water heater standard on Energy consumption and heating insulation. 24-hour temperature loss is less than 8 degrees
• Efficiency Data: 2 levels better than the best top standard.
• 24H Intrinsic energy consumption coefficient only 0.46.
• Intrinsic energy consumption coefficient Level 1<=0.6;Level 2<=0.7;Level3<=0.8;Level 4<=0.9;Level5<=1.
• The hot water output rate is as high as 94.8%; the highest level 1, is only more than 70%. Level 2 would be more than 60%.

• No need to waste minutes of cold water before hot water
• Constant water temperature for more comfort!
• Easy DIY installation possible and Safe to Use

Specifications

• PV Peak Voltage: 72V DC
• PV Open Circuit Voltage: 84V DC
• Grid Power: 240v AC 50 Hz
• Rated Power Consumption: 2500 W/H
• Temperature Range: 86F (30-85℃)

• Tank Material: 304SUS
• Insulation Thickness: 55mm
• Insulation Density: 34 Kg/m³
• Insulation Material: Environmentally friendly Polyurethane
• Natural Energy Consumption Coefficient: 0.46 24hε
• Energy Consumption Level: Super Grade 1
• Energy Efficiency Level of Whole Machine: Super Grade 1
• Hot Water Output Efficiency (μ): 94.8%
• Nominal Pressure: 0.8 MPa
• The model indicates an equivalent average Water Heater. For example, BH-40L-D100L means equal to 100L water output.
